Personalized Wrist Orthosis via Kresling Origami – A Case of Engineering Meets Healthcare
What’s the Problem?
Traditional wrist braces often face a trade-off:
-
They either restrict too much motion (providing stability but sacrificing dexterity).
-
Or they allow too much freedom, which reduces support and risks injury aggravation.
Patients with wrist injuries, carpal tunnel syndrome, or post-surgical rehabilitation needs often complain about stiffness, discomfort, or lack of personalization in standard orthoses. In rehabilitation especially, the wrist doesn’t move in just one direction—it requires multi-degree support that adapts to the healing process.
What’s the Innovation?
Researchers introduced a novel wrist orthosis inspired by Kresling origami, a geometric folding principle known for creating compact, flexible, and multi-directional motion systems.
How it works:
-
Origami Geometry:
-

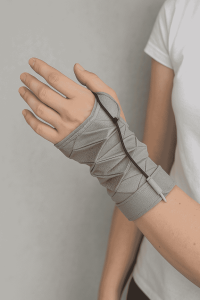

The orthosis structure uses foldable heat-sealable fabric panels arranged in a Kresling origami pattern.
-
This pattern can expand, contract, or twist depending on how it is actuated.
-
-
Tendon-Actuator System:
-
Integrated tendons (like artificial ligaments) pull on the origami folds to activate different support modes.
-
Actuation can be manual or assisted, depending on the version.
-
-
Six Motion Modes:
-
Unlike standard rigid braces, this design supports six distinct wrist movement combinations (e.g., flexion, extension, radial deviation, ulnar deviation, pronation, supination).
-
Patients can adjust the level of restriction vs. freedom, personalizing it to their stage of recovery.
-
Why It’s Important
-
Personalized Rehabilitation: Patients don’t need a new brace for every stage of recovery—the same device adapts from full immobilization to partial and then assisted motion.
-
Comfort + Usability: The fabric and foldable design reduce bulk and improve wearability compared to hard plastic braces.
-
Dexterity Retention: Unlike stiff supports, this orthosis allows for controlled wrist movement, helping patients keep functionality while healing.
-
Cost-Effectiveness: A single adaptable brace could replace multiple devices, lowering costs for both patients and healthcare providers.
Potential Applications
-
Post-surgery rehab (orthopedic or carpal tunnel release)
-
Sports injury recovery (sprains, tendon damage)
-
Chronic conditions (arthritis, repetitive strain injury)
-
Elderly care where flexibility and comfort are critical
Bigger Picture
This case study shows how biomechanics + origami engineering + soft robotics are converging in healthcare. Instead of one-size-fits-all rigid braces, the future is clearly moving toward dynamic, adaptive, and patient-centric support systems.
Think of it as the Fitbit moment for orthopedic supports—functional yet wearable, with the ability to adapt as your body changes.
